Invadants

Post by Team Invade »

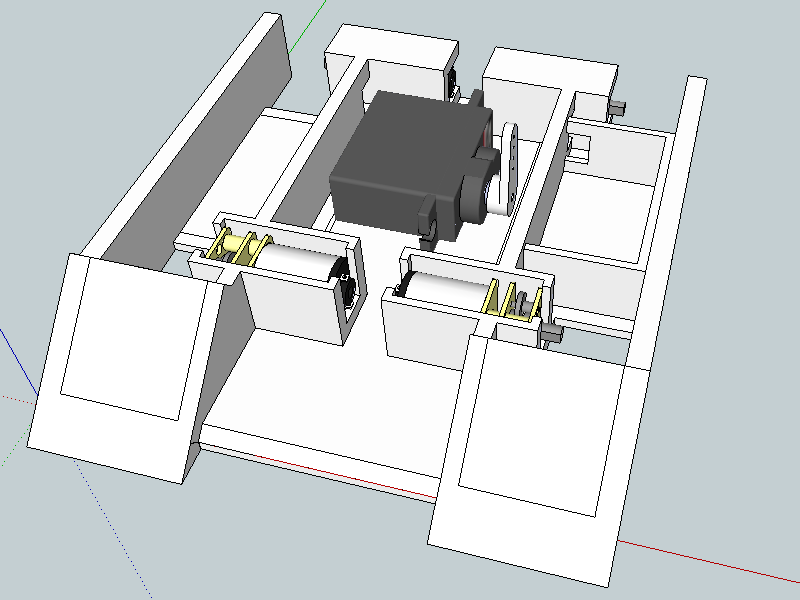

Just started using Sketchup and was pleasantly surprised with how simple it is to use. Started on a CAD design for a new antweight:
Still a lot of weight trimming to do and components to mount :D
Last edited by Team Invade on Sat Oct 22, 2011 6:41 pm, edited 2 times in total.
Website | YouTube | Photobucket | Build Diary

Featherweight UK Champion
Heavyweight Robot Wars Champion

Heavyweight Tag Team Champion
Featherweight Tag Team Champion

User avatar
Jonny
Posts: 532
Joined: Mon Aug 30, 2010 8:18 pm
Location: Reigate
Contact:

Re: Team Invade Antweights

Post by Jonny »

is it gonna be a 4 bar lifter?

User avatar
Team Invade
Posts: 106
Joined: Wed Nov 10, 2010 7:13 pm
Contact:

Re: Team Invade Antweights

Post by Team Invade »

Jonny wrote:is it gonna be a 4 bar lifter?
That's the idea
Website | YouTube | Photobucket | Build Diary

Featherweight UK Champion
Heavyweight Robot Wars Champion

Heavyweight Tag Team Champion
Featherweight Tag Team Champion

Andrew_Hibberd
Posts: 1133
Joined: Tue Jan 20, 2004 12:00 am
Location: London
Contact:

Re: Team Invade Antweights

Post by Andrew_Hibberd »

Looking good, the only thing I can recommend is to cover the surfaces that are likely to be hit with some armour, the 3d printed material is good but isn't as spinner proof as polycarb/HDPE etc. You can 'pre drill' the holes to be tapped in the material which saves a lot of effort. Anything more than 4mm should hold a thread.
TEAM GEEK!

Team Nuclear
Posts: 96
Joined: Sat Oct 23, 2010 10:14 am

Re: Team Invade Antweights

Post by Team Nuclear »

where did you get the CAD for the servo?
Ben
The creator of... Laser, Evil Pig Sty and Striker

User avatar
Jonny
Posts: 532
Joined: Mon Aug 30, 2010 8:18 pm
Location: Reigate
Contact:

Re: Team Invade Antweights

Post by Jonny »

cool!

haz
Posts: 1840
Joined: Thu Apr 15, 2010 11:20 am
Location: Underwater Lair
Contact:

Re: Team Invade Antweights

Post by haz »

the very best of luck to ya, getting that in weight i asume your getting banebots escs?

User avatar
Team Invade
Posts: 106
Joined: Wed Nov 10, 2010 7:13 pm
Contact:

Re: Team Invade Antweights

Post by Team Invade »

haz wrote:the very best of luck to ya, getting that in weight i asume your getting banebots escs?
I was planning on using Peter Waller's Option B board

Never heard on banebots escs :lol:, so a link would be useful
Website | YouTube | Photobucket | Build Diary

Featherweight UK Champion
Heavyweight Robot Wars Champion

Heavyweight Tag Team Champion
Featherweight Tag Team Champion

haz
Posts: 1840
Joined: Thu Apr 15, 2010 11:20 am
Location: Underwater Lair
Contact:

Re: Team Invade Antweights

Post by haz »

peter's boards can't handle 4 motors, the banebots are the ones that david weston uses in baby hell, i will try to find a link

razerdave
Posts: 1545
Joined: Mon Jan 02, 2006 9:40 pm
Location: Carterton, Oxfordshire
Contact:

Re: Team Invade Antweights

Post by razerdave »

I highly recommend Banebots, I have used them in Baby Hell and FIN and never had a problem with them. The banebots, without heatsink and wires, are 3 grams each, so my speedos are 6g total, hence I can get 4WD, 6mm HDPE and a weapon in 150g :). The 3Amp ones I use have been able to run a kilobot.
