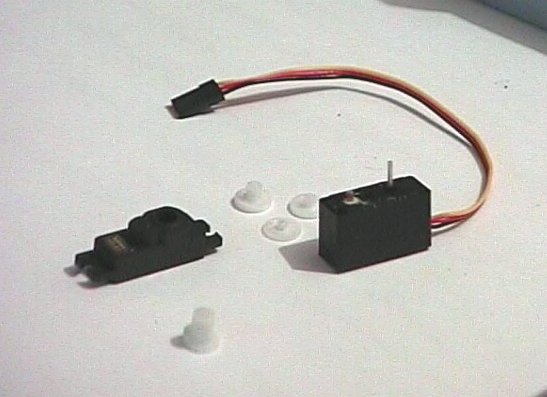

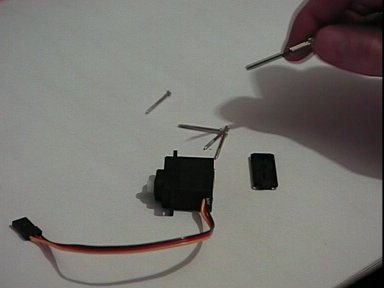

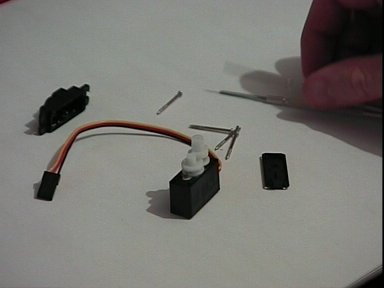

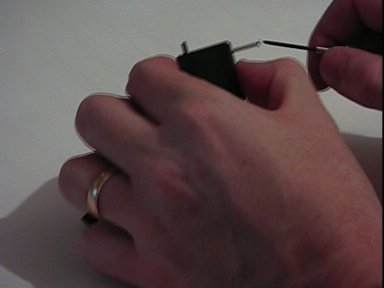

1. Remove 4 fixing screws from base to release top
and bottom sections. |
2. Remove base panel and top section carefully. |
3. Servo contains a small stack of gears. Note the
positions for re-assembly. |
|
|
|

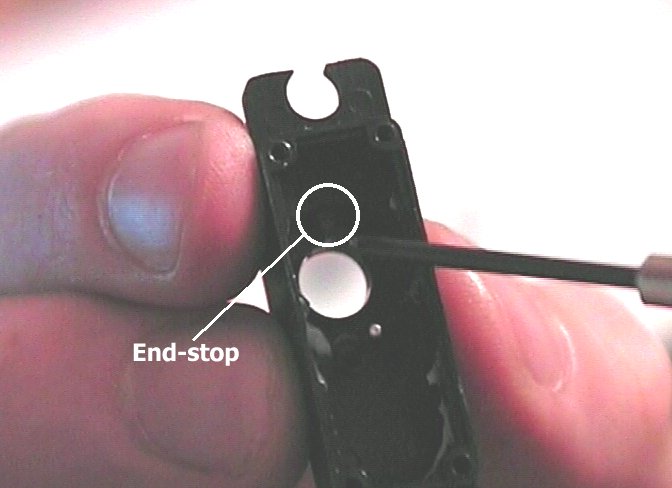

4. Identify 'End-stop' in the top cap. This plastic
node prevents 360 degree rotation of drive. |

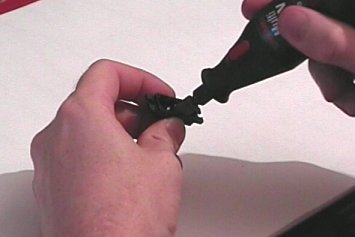

5. Using a small file, reduce the node until it is
flat and inline with the rest of the inner lid. |

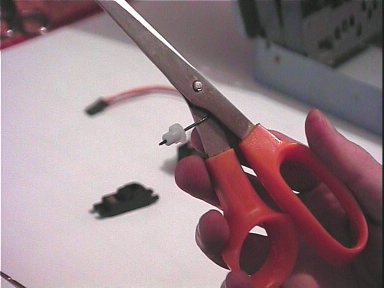

6. Using a small (1.5mm) drill, remove internal 'stop'
from the final output gear - the one that is visible when together. |
|
|
|

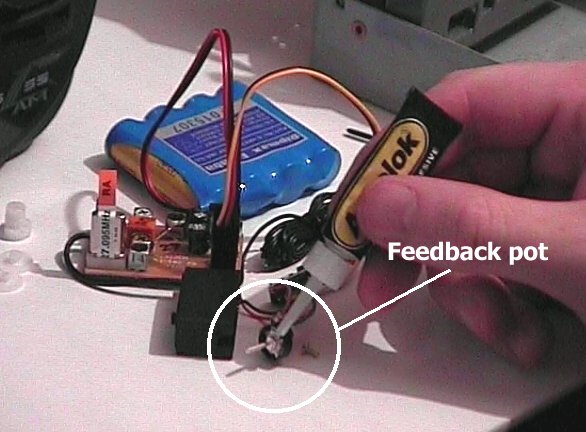

7. Identify the feedback pot. This is normally the
spindle that the final gear sits on. It will have a small notch. |

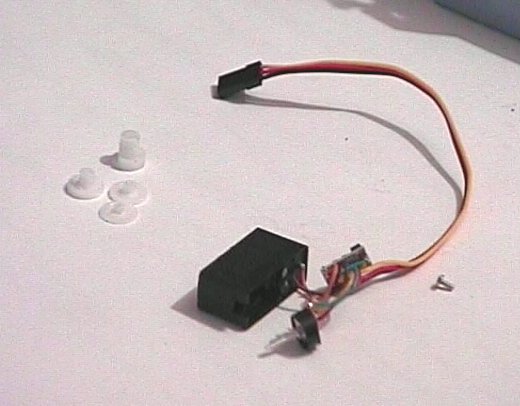

8. Remove the pot from servo (if necessary). On HS-80
this is not required. HS-81 shown here. Don't remove wires. |

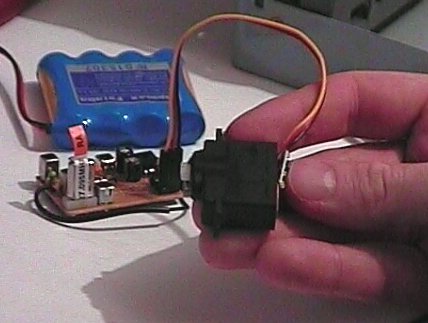

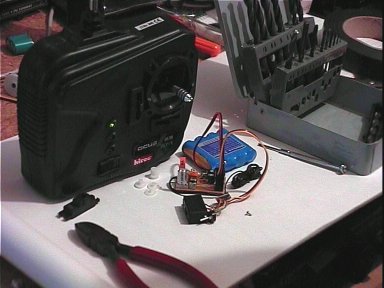

9. Connect servo to Rx and battery. Switch on Tx with
stick centered and trimmers at neutral. |
|
|
|
10. Turn the feedback pot until servo motor stops
running. Now glue pot arm in place with superglue or glue gun type
adhesive. |

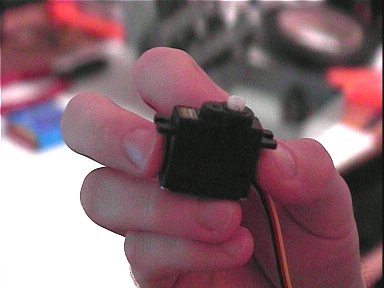

11. When dry, refit all components and check the servo
runs continuously in both directions by moving the Tx stick. |
12. Finally replace bottom panel and screw back together.
When modifying second servo, connect first as well to get perfect
neutral. |
